Checkly automatically collect Network Waterfalls & Performance signals (Web Vitals) for each of the pages you visit in the browser session.

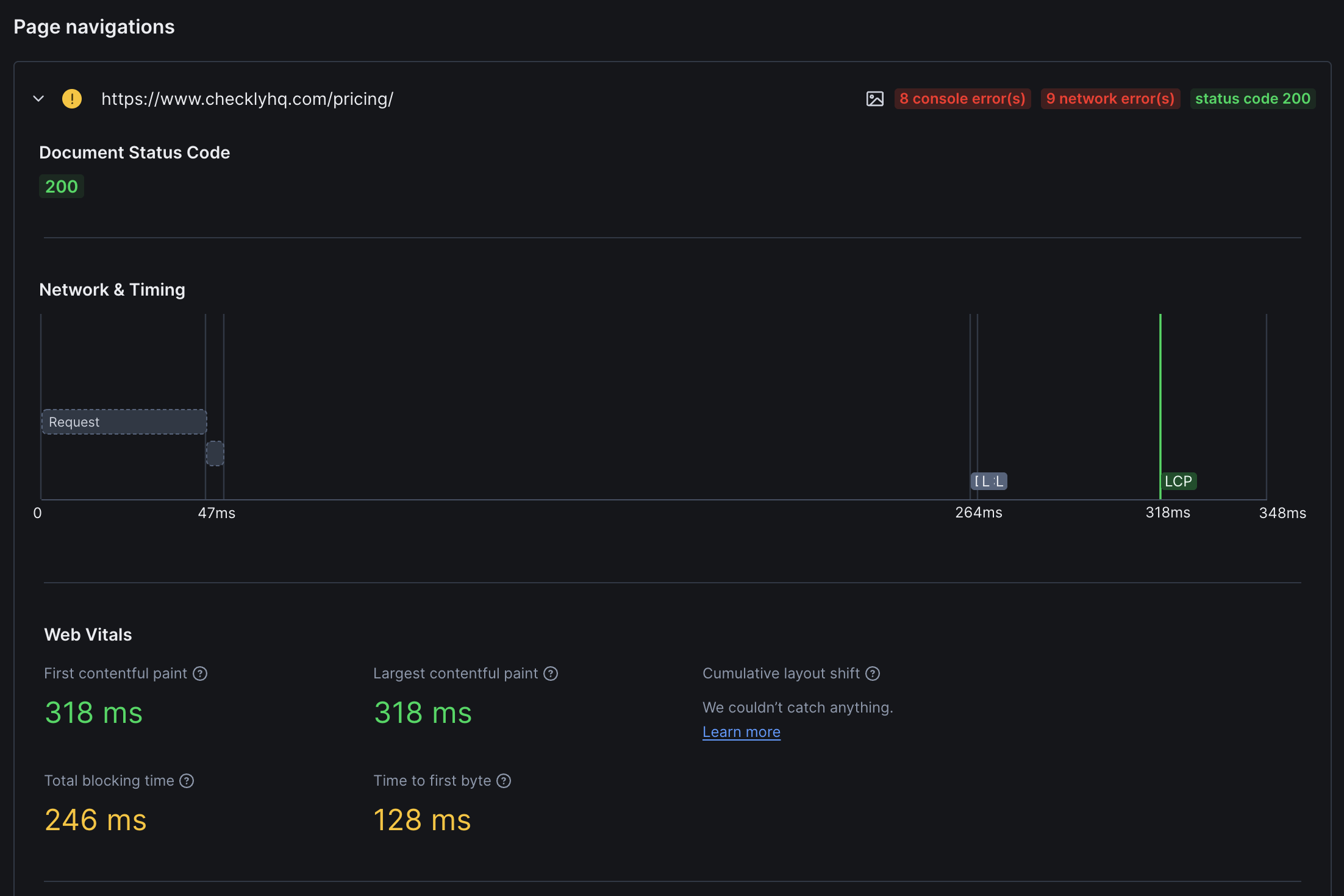

Light mode interface
Checkly only collects tracing and web vitals data if your browser check meets the following criteria:
  • It is based on Playwright.
  • It runs on any runtime above 2021.06

​
Network Waterfalls

For each page you visit, we automatically collect the following:
  1. Any error, warning or info level console messages.
  2. Any network requests, like xhr/fetch, javascript, css and others.
You can use this data to quickly find issues with the pages you visit. Use cases are:
  • Finding critical errors in your JavaScript by scanning the console logs.
  • Pinpoint missing images or other resources: they will show a 404 in the network tab.

​
Web Performance Vitals

For each page your script visits, we automatically collect a set of five Web Vitals. Web Vitals are user focused quality signals for web pages that indicate a good, ok or poor user experience.
Initial Content Display Measures the time from when the page starts loading to when any content is rendered. A large FCP means users see a white screen for too long, doubting whether the page works at all.Read more about FCP over at web.dev
Main Content Loading Measures the time to render the largest visual item within the browser viewport. High LCP means users wait too long before the most useful part of your page loads.Read more about LCP over at web.dev
Visual Stability An aggregate metric that signals screen elements “jumping around” as the page loads. Low CLS means you have a stable page layout.Read more about CLS over at web.dev
Main Thread Responsiveness Reflects the time a web page is “blocked” from receiving user input because the main rendering thread is busy. High TBT means sluggish user interactions.Read more about TBT over at web.dev
Server Response Time Indicates how long it took for your server to respond with the first byte of content. TTFB can vary based on location and network conditions.Read more about TTFB over at web.dev
Web Vitals are a part Google Lighthouse, but the two are not the same: Web Vitals are a lighter, higher-level tool built on existing browser APIs. Being less resource-intensive than Lighthouse, Web Vitals can be reliably calculated for you on cloud resources every minute.

​
Why are some Web Vitals not reported?

Checkly automatically instruments your Playwright code to collect Web Vitals metrics. However, in some cases we will not be able to collect a good measurement. There are multiple reasons for this:

​
Route-Based Navigation

A Single Page App like a React, Vue or Angular app only has one HTML page load event and then relies on route changes. The underlying library we use for collecting Web Vitals does not yet account for this. The folks over at Google are aware of this and posted an FAQ.

​
Insufficient Measurement Time

Cumulative Layout Shift (CLS) relies on layout events accumulating over time. If your script exits very fast, or triggers a redirect, there might not be enough time to actually “catch” this metric.

​
User Interaction Needed

Some metrics require a small amount of interaction to effectively “trigger”. Clicking a button or other screen element in your Playwright script can help here.
We are constantly tweaking and updating our Web Vitals collection code, so expect improvements in the future!

​
Lab metrics vs. Field metrics

Checkly collects “lab” metrics for you. These are different from “field” metrics.

Lab Metrics

Controlled Environment
  • Collected in synthetic environments
  • Generated by your Browser check scripts
  • Useful for establishing baselines
  • Helps identify performance regressions
  • Perfect for pre-deployment testing

Field Metrics

Real User Monitoring (RUM)
  • Based on real user traffic
  • Collected “in the wild”
  • Varies by device, location, network
  • Provides actual user experience data
  • Essential for production monitoring
