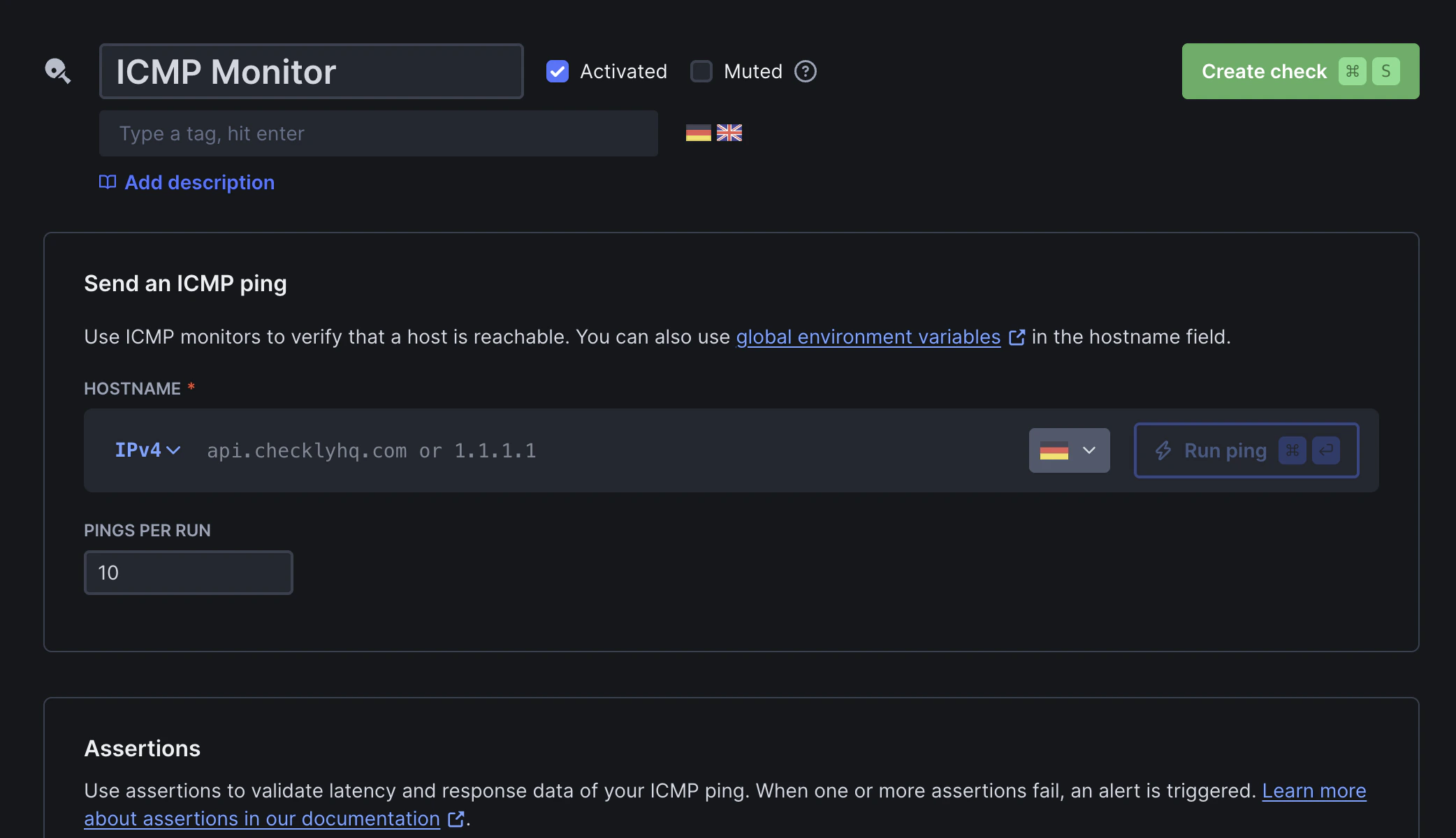

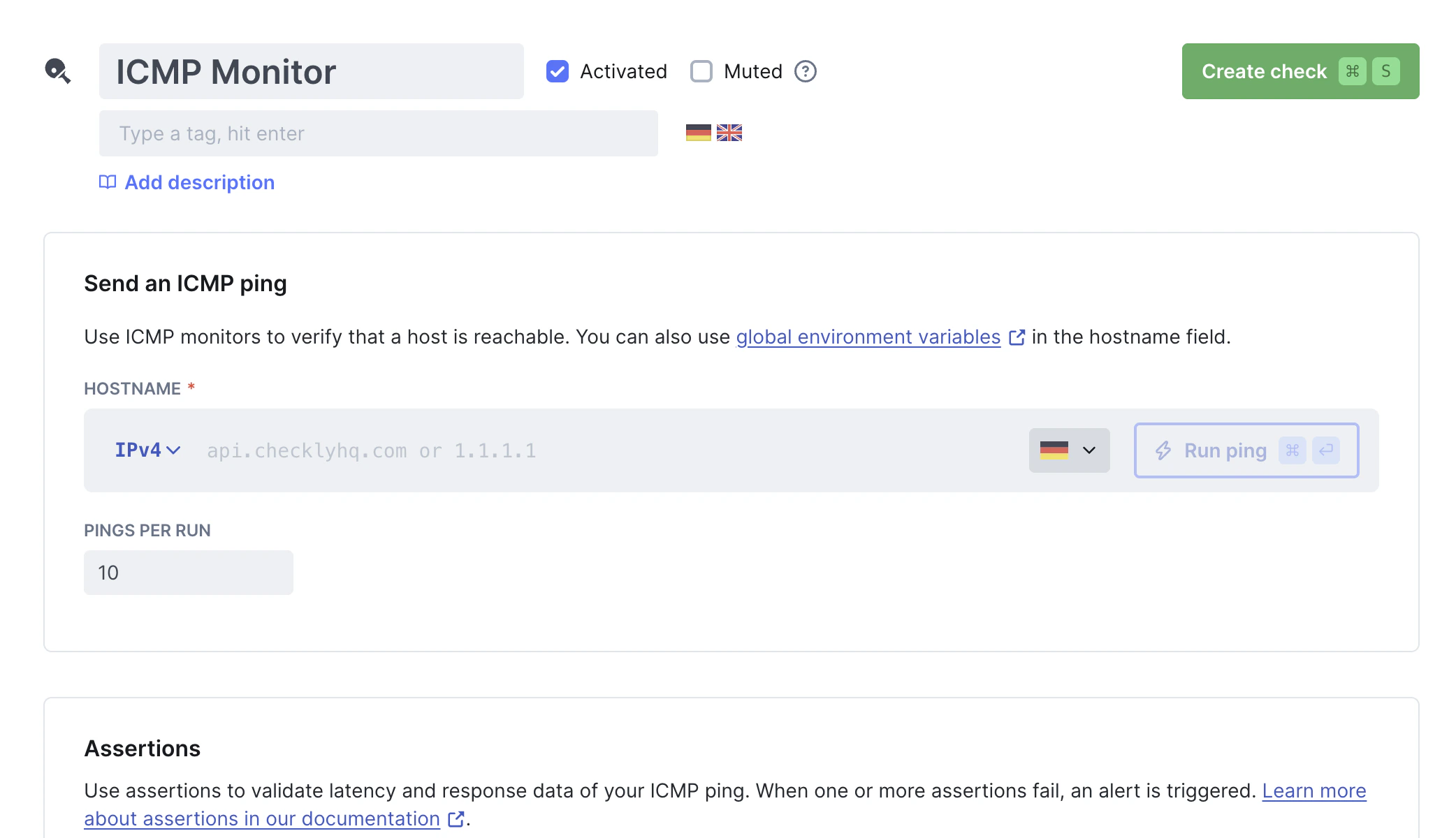

ICMP monitor overview

​
What are ICMP Monitors?

ICMP monitors check if a host is reachable by sending ICMP Echo Requests (pings). Typical use cases include:
  • Verifying reachability for servers, load balancers, or network appliances that don’t expose HTTP endpoints or open TCP ports
  • Detecting network-level outages before they’re visible via HTTP endpoints
  • Monitoring latency across regions to identify geographic performance issues
  • Tracking packet loss to catch network quality degradation early

​
How do ICMP monitors work?

ICMP monitors perform ping tests:
  • Hostname resolution: If a hostname is provided, Checkly resolves it to an IP address
  • Ping execution: Multiple ICMP Echo Request packets (configurable from 1–50, default: 10) are sent from your configured locations, with a 500 ms interval between each ping
  • Response validation: ICMP Echo Reply packets are received. Round-trip latency and packet loss are measured and evaluated against your configured assertions
For example, pinging checklyhq.com with 3 pings returns:
PING checklyhq.com (18.239.105.69): 56 bytes of data
64 bytes from 18.239.105.69: icmp_seq=0 ttl=247 time=6.6 ms
64 bytes from 18.239.105.69: icmp_seq=1 ttl=247 time=49.8 ms
64 bytes from 18.239.105.69: icmp_seq=2 ttl=247 time=6.6 ms

--- checklyhq.com ping statistics ---
3 packets transmitted, 3 received, 0% packet loss
round-trip min/avg/max/stddev = 6.573/20.993/49.812/24.958 ms
The response appears on the results page as both raw output and parsed JSON. You can use it as a reference to define assertions for expected values.

​
ICMP Monitor Results

Select a specific check run to inspect its results:

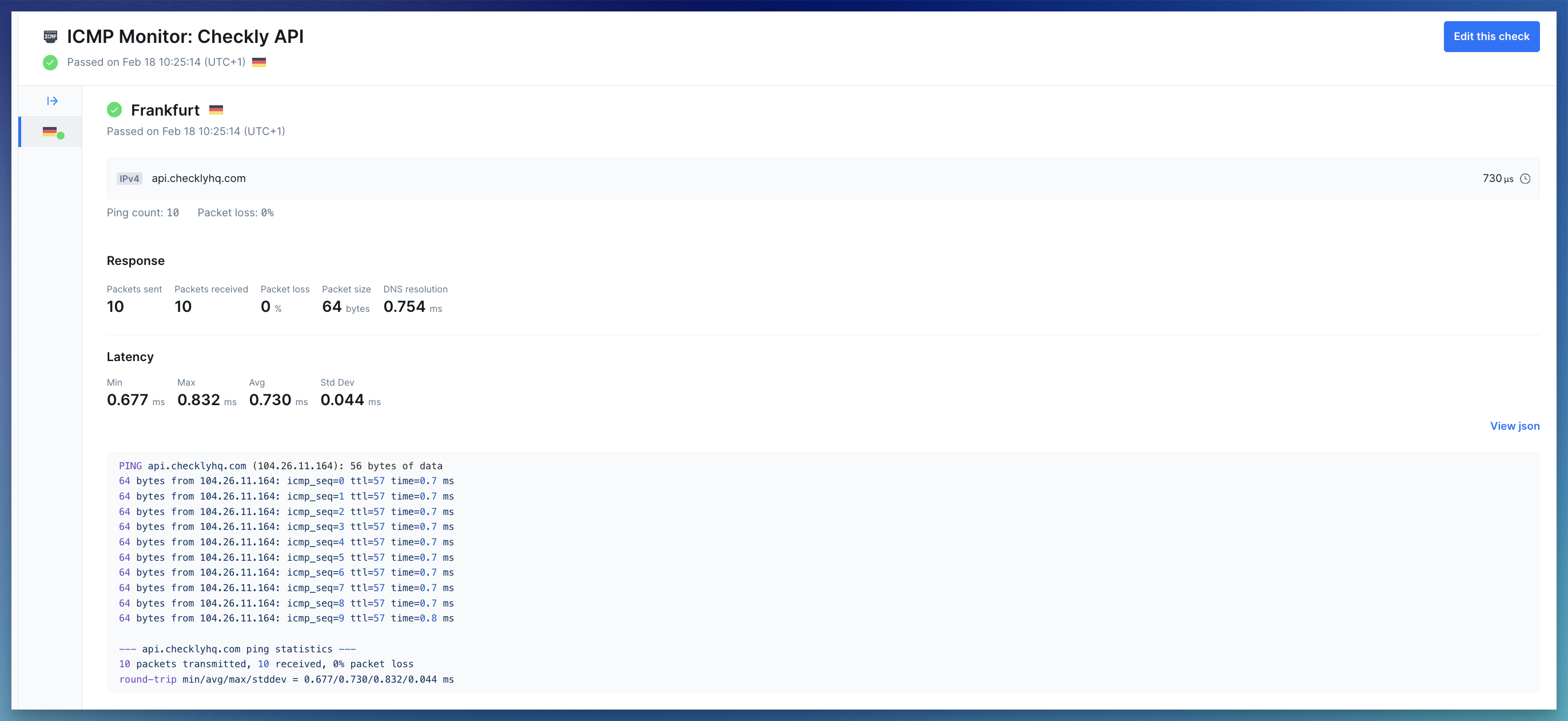

ICMP monitor results page
  • Summary: Shows the target (hostname or IP), the monitor state (passed, degraded or failed), and average latency
  • Error details: If a run fails, you’ll see the error status code and message to help diagnose what went wrong
  • Response metrics: Network metrics collected during the run:
    • Packet info: packets sent, packets received, packet loss, and packet size
    • DNS resolution time: how long it took to resolve the hostname to an IP address
    • Latency: min, max, avg, and std dev of round-trip times (RTT) across all received packets
  • Response payload: Shows the raw ping result. Also available as parsed JSON
The monitor’s overview page aggregates historical run data, allowing you to analyze latency and packet loss trends over time.

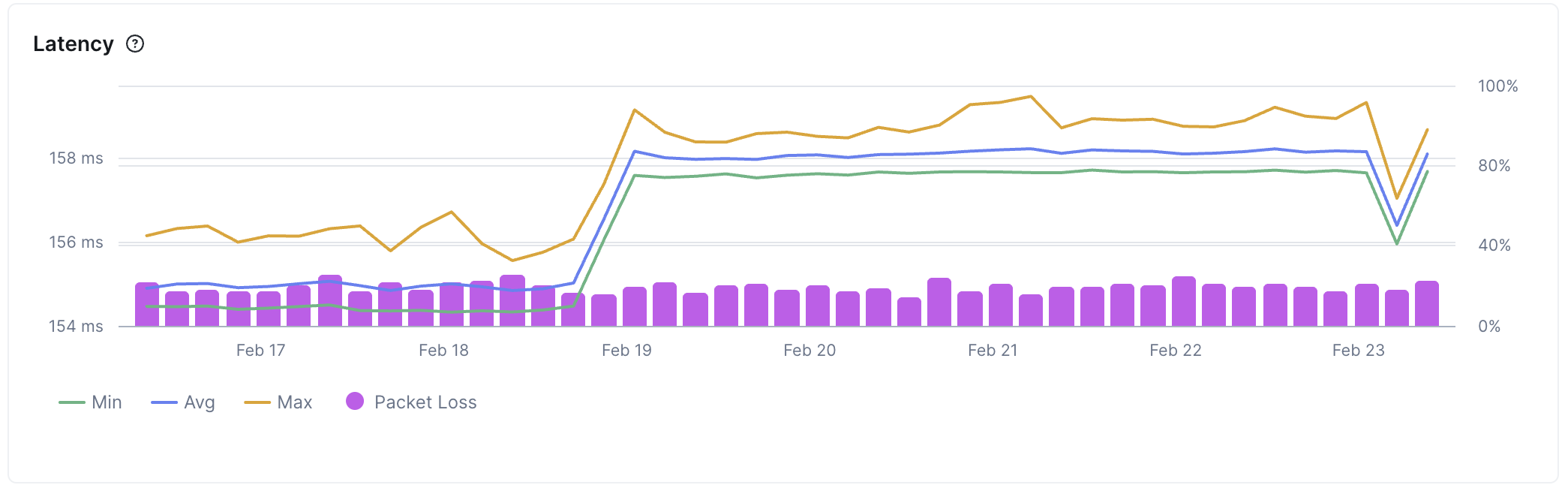

ICMP monitor chart showing a breakdown of latency metrics and packet loss over time
Learn more in our documentation on Results.

​
Troubleshooting Common Issues

Container runtimes drop NET_RAW by default. ICMP monitors need raw sockets, so the Checkly Agent needs this capability explicitly granted.How to fix:In Kubernetes, update your pod spec or Helm values:
  • allowPrivilegeEscalation=true — prevents Kubernetes from setting the no_new_privs bit on the container process, which would otherwise block file capabilities (like cap_net_raw+ep on the ping binary) from taking effect.
  • capabilities.add=["NET_RAW"] — adds CAP_NET_RAW to the container’s bounding and permitted capability sets, allowing the kernel to open the raw sockets (SOCK_RAW).
securityContext:
  allowPrivilegeEscalation: true
  capabilities:
    add: ["NET_RAW"]
In Docker:
docker run --cap-add=NET_RAW ghcr.io/checkly/agent:latest
Docker does not set no_new_privs by default, so --cap-add is sufficient. If you run with --security-opt no-new-privileges, file capabilities on binaries will be blocked — remove that flag to allow NET_RAW.NET_RAW only grants permission to create raw sockets. It does not escalate broader container privileges.
Symptom: ICMP monitor shows complete packet loss, but the website/API works fineRoot cause:
  • Many organizations block ICMP echo request packets at the firewall, load balancer, or host level as a security measure
How to detect and fix:
  1. Verify HTTP connectivity: Create an API or URL monitor for the same hostname to confirm it’s reachable
  2. Check both protocols: Test both IPv4 and IPv6, some hosts allow ICMP on one protocol but not the other
  3. Confirm with infrastructure team: Ask if ICMP is intentionally blocked in security policies
When to use a different monitor type: If ICMP is deliberately blocked, use TCP, URL, or API checks instead to verify availability at the application layer
