We’ve optimized the Checkly CLI to work in any CI/CD workflow. Here are the basics you need to know that will come in handy when adapting the examples we give you to your own, specific setup.
  1. For authentication, make sure to set the CHECKLY_API_KEY and CHECKLY_ACCOUNT_ID parameters as environment variables in your CI/CD platform.
  2. Set the reporter you want to use for the test command using the --reporter flag, i.e. --reporter=dot.
  3. To store a test session with full logging, traces and vides, set the --record flag for the test command.
  4. Use the --force flag on the deploy and / or destroy commands to skip the normal confirmation steps.
When using the --record flag, the CLI will attempt to parse git specific information from the environment to display in the recorded test session as metadata. However, you can also set these data items specifically by using environment variables.
itemautovariabledescription
RepositoryfalserepoUrl in checkly.config.ts or CHECKLY_REPO_URLThe URL of your repo on GitHub, GitLab etc.
Commit hashtrueCHECKLY_REPO_SHAThe SHA of the commit.
BranchtrueCHECKLY_REPO_BRANCHThe branch name.
Commit ownertrueCHECKLY_REPO_COMMIT_OWNERThe committer’s name or email.
Commit messagetrueCHECKLY_REPO_COMMIT_MESSAGEThe commit message.
EnvironmentfalseCHECKLY_TEST_ENVIRONMENTThe environment name, e.g. “staging”

​
A Basic pipeline example

Create a new Jenkinsfile in your repo, or add the steps and stages from the example below to your existing file. This pipeline is “branch aware” and treats the main branch as the production branch. This means checks are only deployed to Checkly after they are ran against production (after merging to main) and the checks passed.

​
Configuring Jenkins to run the Checkly CLI

As the Checkly CLI is a Node.js project, the main step you need to take is install the NodeJS plugin.
  1. In Jenkins, go to Manage Jenkins → Plugins → Available plugins and look for the NodeJS plugin and install it.

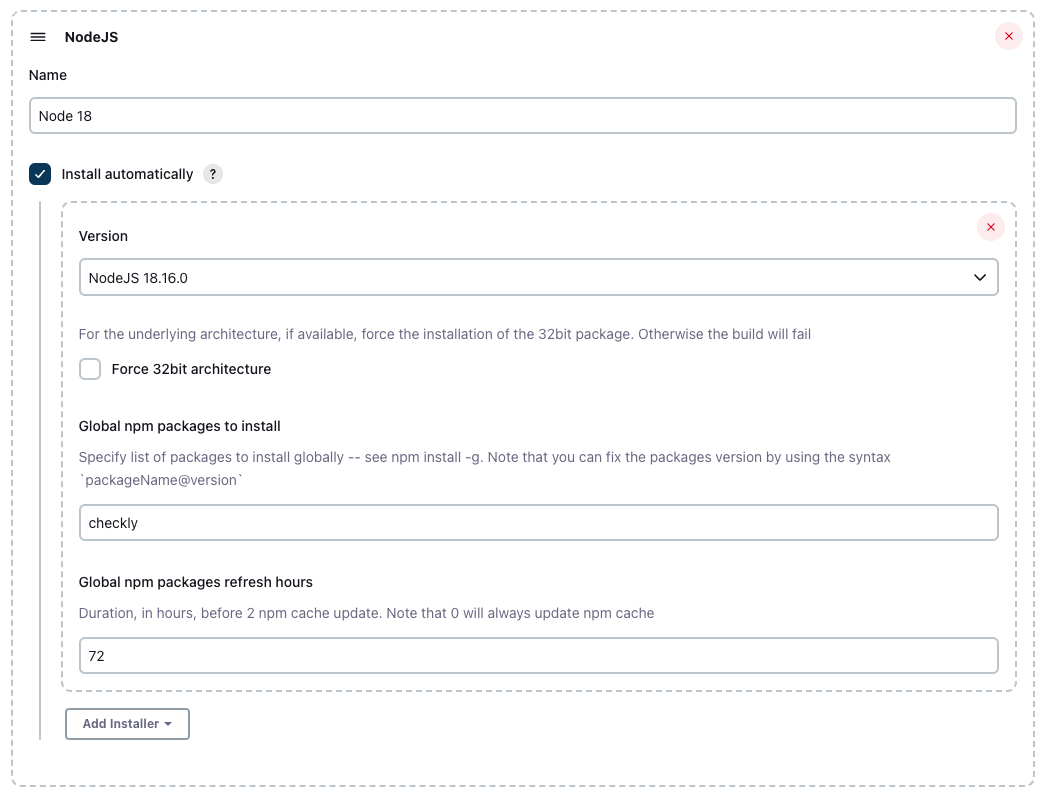

  2. After installing the NodeJS plugin, we need to configure it. Head over to Manage Jenkins → Tools and click “Add NodeJS”
Jenkins Nodejs config We recommend using any Node.js stable version higher than 16.x.

​
Set your Checkly credentials

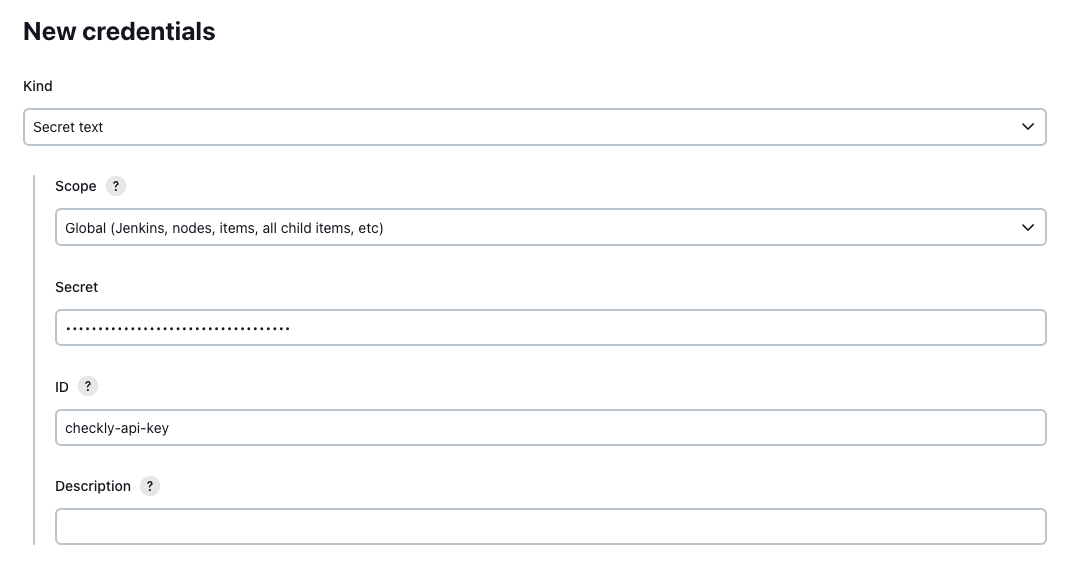

Navigate to Manage Jenkins → Manage Credentials to add your Checkly account ID and API key to your preferred scope. Store them as “secret text” and assign and ID to the credential. Jenkins Nodejs config

​
Configuring the Jenkins Pipeline

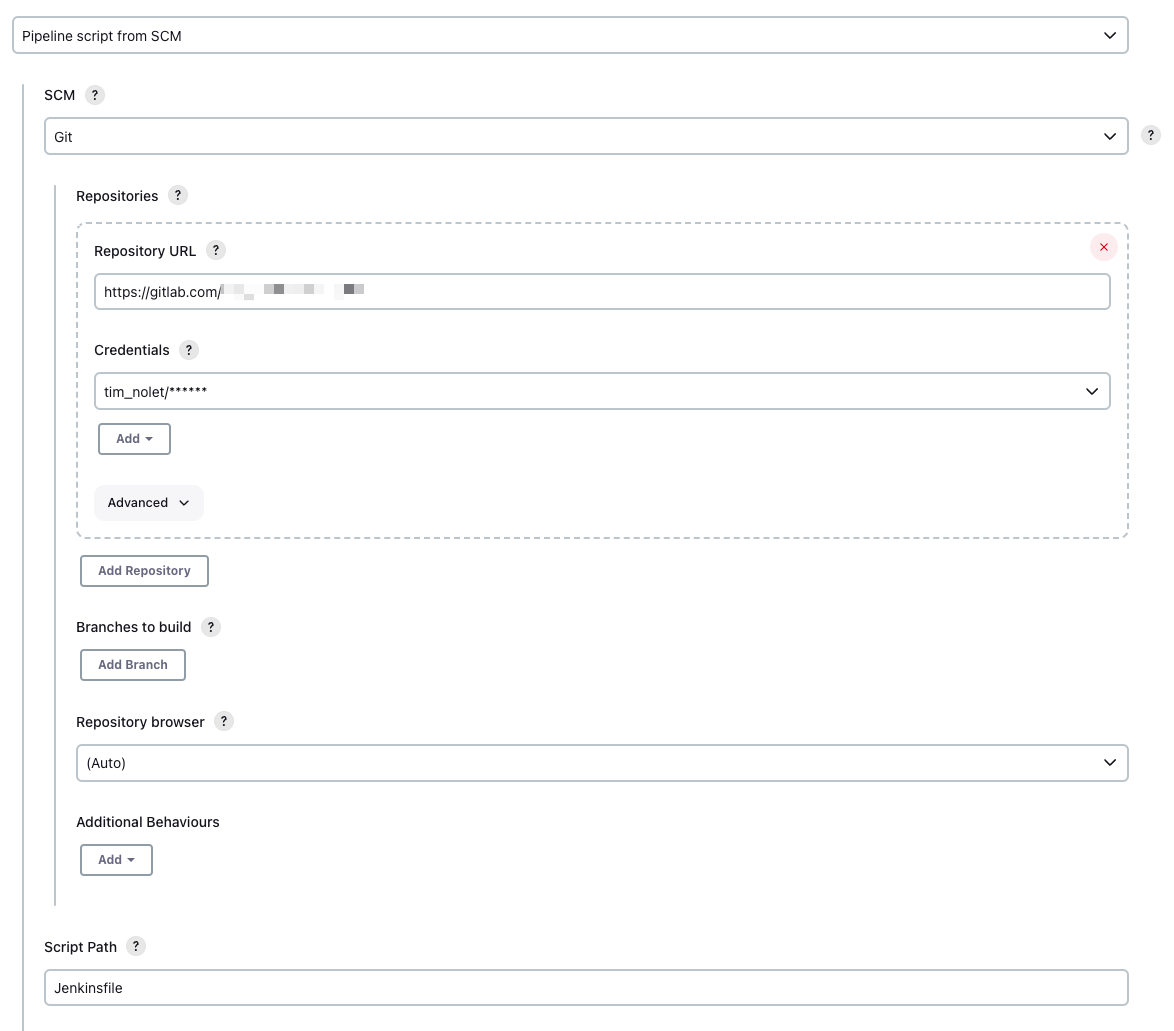

Add the Jenkinsfile to your repo that defines the basic stages and steps. Make sure to set up your SCM settings correctly so Jenkins can fetch your git repo and look for the Jenkinsfile in the root of your project. Jenkins Nodejs config The actual contents of your Jenkinsfile will differ based on your code and how you deploy. But in general, your pipeline should look as follows:
  1. You deploy your application first.
  2. You install the required dependencies for the Checkly CLI.
  3. You run the checkly test command.
Jenkinsfile
pipeline {
    agent any

    tools {nodejs "Node 18"}
    environment {
        CHECKLY_API_KEY = credentials('checkly-api-key')
        CHECKLY_ACCOUNT_ID = credentials('checkly-account-id')
        CHECKLY_TEST_ENVIRONMENT='production'
    }

    stages {
        stage('Deploy') {
            steps {
                echo 'Deploying....'
            }
        }
        stage('Dependencies') {
            steps {
                sh 'npm ci'
            }
        }
        stage('checkly test') {
            steps {
                sh 'npx checkly test --record'
            }
        }
        stage('checkly deploy') {
            when {
                branch "main"
            }
            steps {
                sh 'npx checkly deploy --force'
            }
        }
    }
}
